Spring Testing Press - Nencki Spring Testing NST
Every spring has its own character "Test instead of Replace"
Springs play an important role in the behavior of bogies. By testing them, it is ensured that they meet the requirements for installation in bogies. Additionally, important data for assembly in bogies is provided. With our spring testing presses, the following properties of various springs can be tested:
- Measuring axial stiffness
- Lateral force and deflection
By testing used springs and reusing them, operating costs can be significantly reduced – Test instead of Replace.

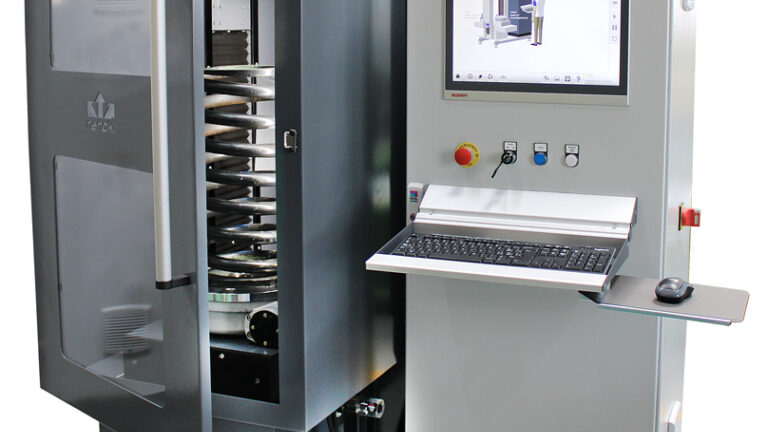

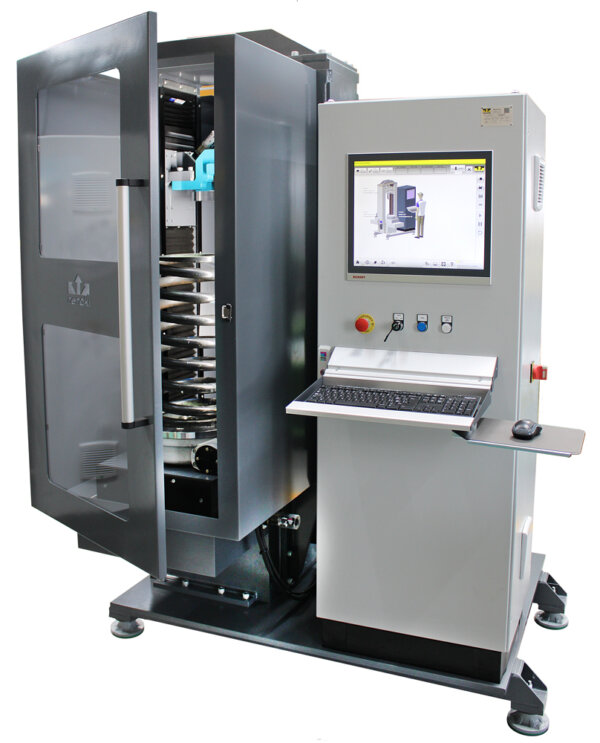

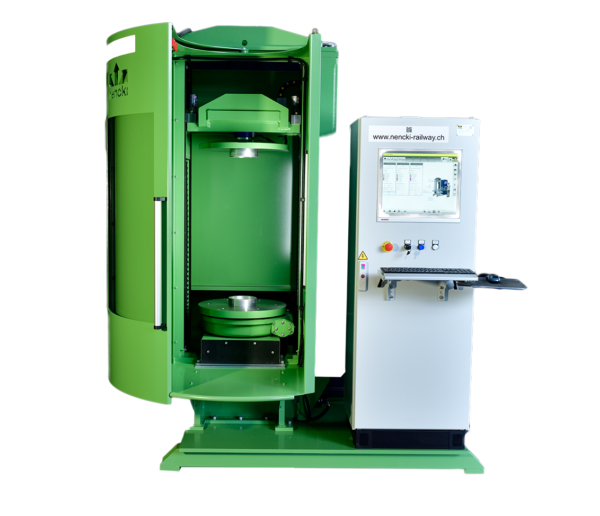

NST 100E
for small to medium test loads
With 100 kN test force, springs for medium loads can be tested for use in all bogies. The ergonomic design allows for quick loading and unloading of the test stand. The Plug & Play concept enables rapid relocation of the system in any workshop environment.
Fields of application: Regional railway network operators / Tram and metro operators
Applications: Coil springs / Conical springs / Chevron springs / Leaf springs
- Test force: up to 100 kN
- For axial and lateral tests

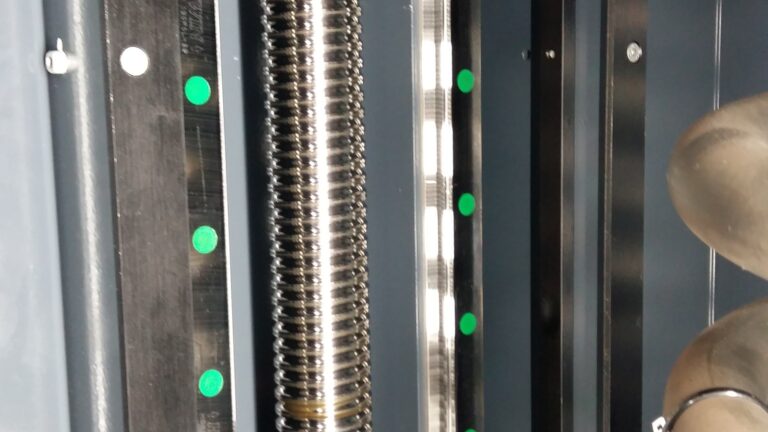

- Fully electric drive with ball screw spindles
- Precise measurement of axial stiffness, lateral stiffness, and bending angle
- High test repeatability
- Ergonomic loading height
- Integrated database for spring data, adapters, and test programs
- Storage of all test results (MS SQL database, exportable)
Optional:
- Horizontal slide (motorized for ergonomic loading)
- Rotary drive for lateral stiffness measurement
- Thermal label printer (including barcode option)
- Remote maintenance via internet connection
The system complies with the internationally recognized test standards EN 13298 and EN 13913 as well as other guidelines.
