Damper Test Stand - Nencki Damper Testing NDT
Precise Testing – Economical Maintenance
With increasing speeds and axle loads, the demands on test systems for shock absorbers are also rising. Based on the test results, it can be assessed whether the tested shock absorber needs to be replaced or still meets the specified operational requirements. With our Damper Test Presses-NDT, the prerequisites for cost-effective rolling stock maintenance are thus provided.
- Testing the damper force depending on the speed
- Testing the dampers in corresponding installation positions (horizontal, vertical, diagonal)

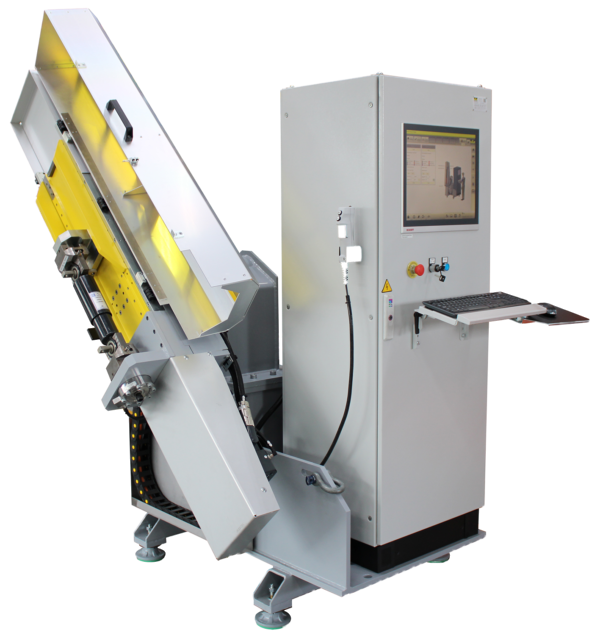

Damper Test Stand

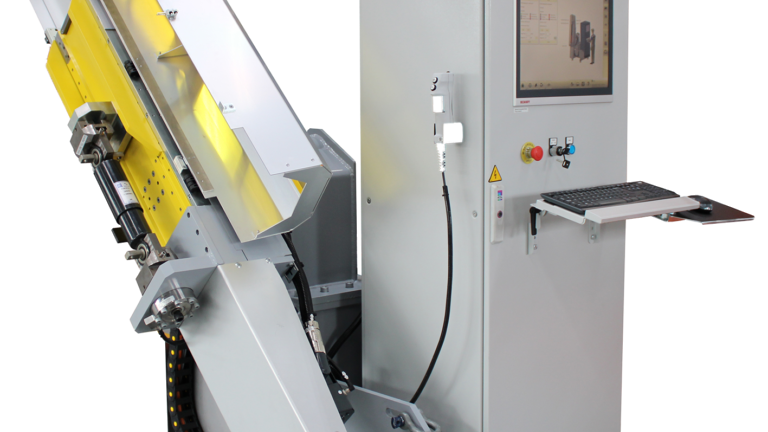

Damper Test Stand - Nencki Damper Testing NDT

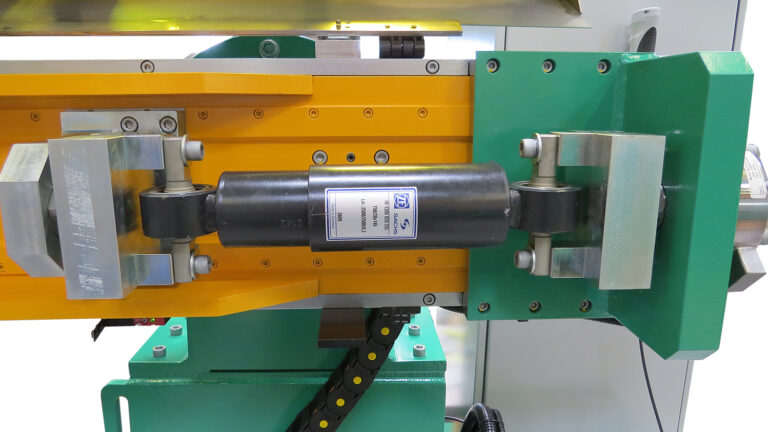

Check the damping force and tightness of shock absorbers with 25 kN test force. The Damper Test Stand-NDT is designed for the following damper dimensions:
- Test space for dampers and adapters: 200 x 200 x 1200 mm
Applications: Maintenance facilities of railway operators / rolling stock manufacturers
- Test force: 25 kN
- Recording of compression and tensile force at different speeds
- Robust, compact and stable design
- PLC control via industrial PC
- 19" touch screen
The system complies with the internationally recognized test standard DIN EN 13802.
