Grinding Machine NRG

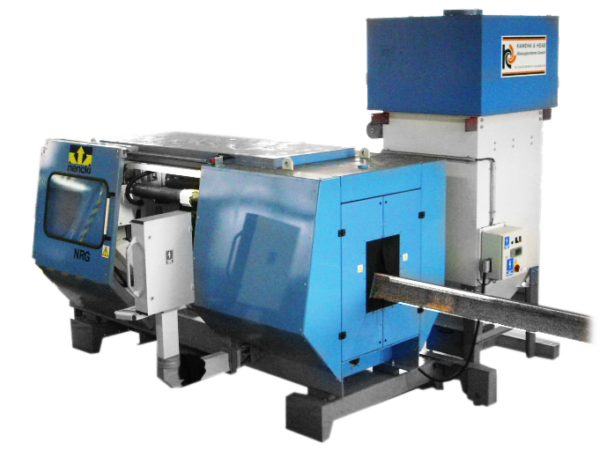

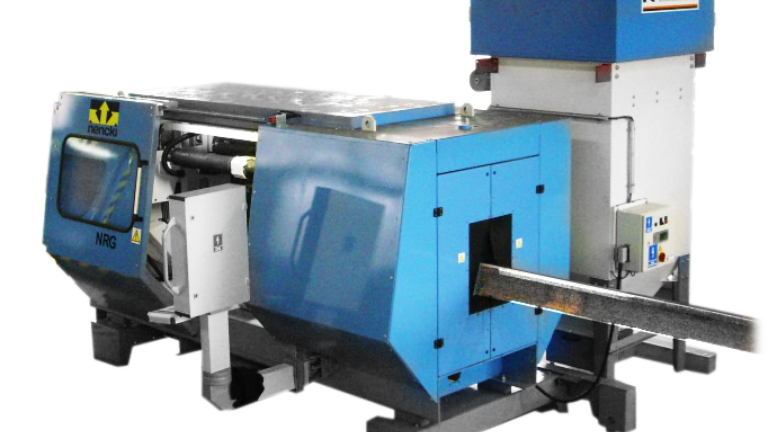

Rail Grinding Machine – Nencki Rail Grinding NRG

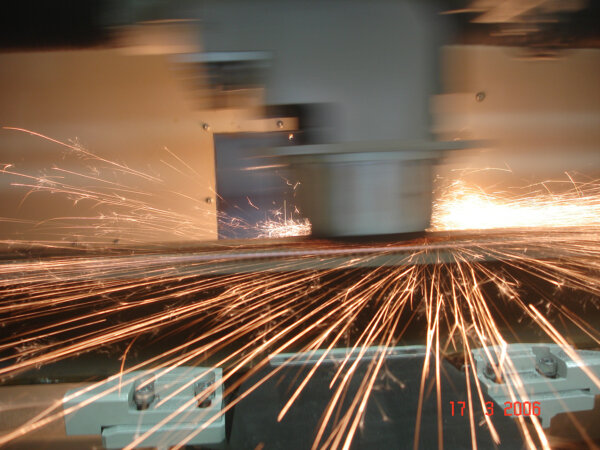

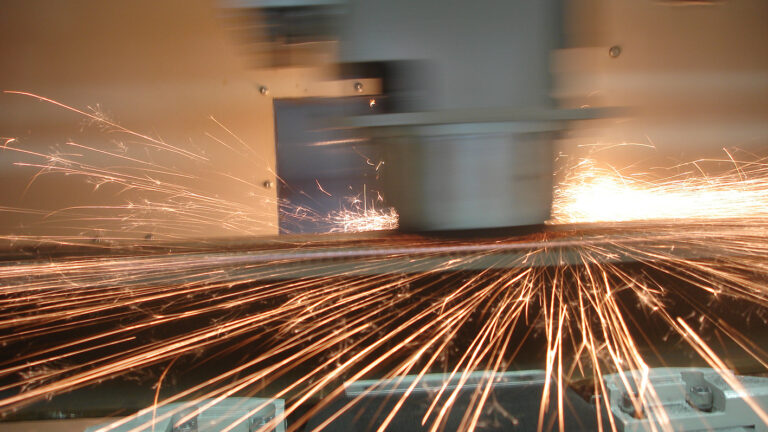

Reprofile the rails with the Grinding Machine NRG after welding. Grinding is performed both on the top and sides of the rail head. The maximum heating temperature of 450 C° is not exceeded – Thus, the steel structure (microstructure) of the rails remains unchanged and withstands the required loads.

Application: All rails and rail profiles with the following dimensions can be brushed: H: 125 - 205 mm / W: 125 - 150 mm

• PLC control
• Usable indoors/outdoors
• Monitoring of all functions and measurements via PC and PLC (IEC 61131-3)
• Rotatable grinding head with servo-hydraulic drive
• Manual or fully automatic operation possible
• Rail head position measurement with laser measurement system
• Robust construction
• Easy replacement of the grinding wheel
• User-friendly and intuitive software

The system complies with the internationally recognized Machinery Directive 2006/42/EC.
