Mechanical Processing

Versatile and Competent

Thanks to the extensive experience of our specialists and the optimally coordinated machinery, there are hardly any limits to the possibilities in the manufacturing of components and assemblies. Upon request, we accompany you from the first idea to the final production, throughout the entire manufacturing process. Our production processes are, of course, certified according to ISO 9001:2015.

Here you can find the entire offer at a glance.

Kontaktpersonen

Turning
Milling
Cylindrical Grinding
Honing
Deep Hole Drilling

Home
Contract Manufacturing
Mechanical Processing

Turning

Our Core Competence

The rotary machining and the use of driven tools enable the complete machining of workpieces in a few setups. This minimizes changeover times while simultaneously increasing productivity.

Workpiece lengths of up to 3,450 mm and diameters up to 610 mm (with steady rest 310 mm) are also possible. Whether single or series production, we can procure the raw material for you according to your specifications upon request. With a framework agreement, components can be ordered at any time on call.

Here you can find the entire offer at a glance.

Maschine	max. Drehlänge in mm	max. Drehdurchmesser in mm	Lünette max. Durchmesser in mm
Maxxturn 110	3'450	610	310
CTX 750-2000	2'000	420	245
Emco E65	680	310	keine

Home
Contract Manufacturing
Mechanical Processing

Milling

Flexible and Diverse

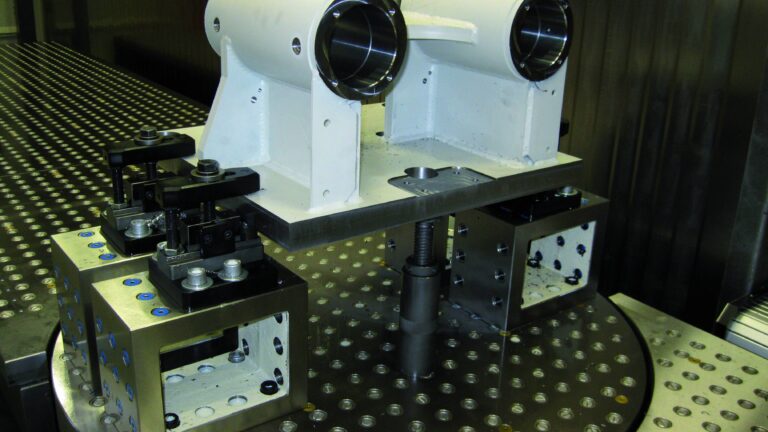

Workpieces with a length of up to 5,000 mm can be machined on multiple sides in just a few setups. Our machines are equipped with grid plates, 50 mm division / M16 thread. This flexible solution allows for a variety of clamping options. As a result, setup times are significantly reduced and productivity is increased. Upon request, we are happy to take over material procurement according to your specifications. Whether single or series production – you always receive the highest precision and quality.

Here you can find the entire offer at a glance.

Maschinentyp	Daten	Möglichkeiten
Matec-30 HV	Fahrständer Bearbeitungszentrum	5-Seiten- oder 3D-Bearbeitung – Rasterplatte mit Einteilung 50 mm, M16 - CNC-Rundtisch ø 1000 mm - Schwenkkopf 105 ° - X-Achse 5000 mm Y-Achse 1000 mm Z-Achse 1000 mm
Victor VC-A110	4-Achsen Vertikal-Bearbeitungszentrum	Angetriebene 4-Achse mit Aufnahmeflansch Ø320 - Rasterplatte mit Einteilung 50 mm, M16 X-Achse 1100 mm Y-Achse 600 mm Z-Achse 560 mm
VC55	3-Achsen Vertikal- Bearbeitungszentrum	X-Achse 550 mm Y-Achse 460 mm Z-Achse 460 mm

Home
Contract Manufacturing
Mechanical Processing

Cylindrical Grinding

High Dimensional and Form Accuracy

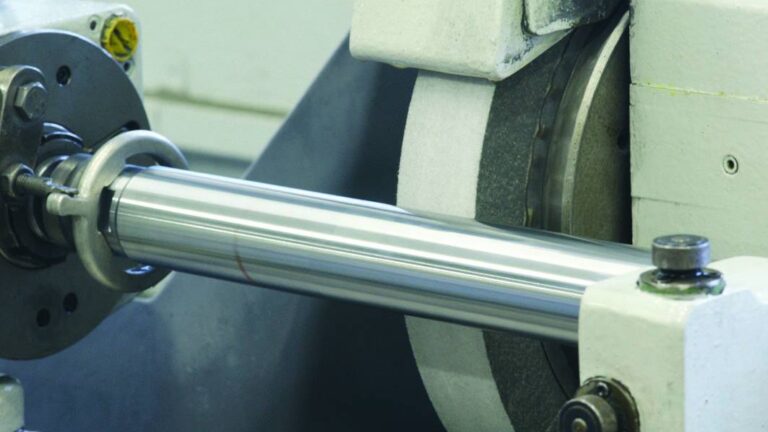

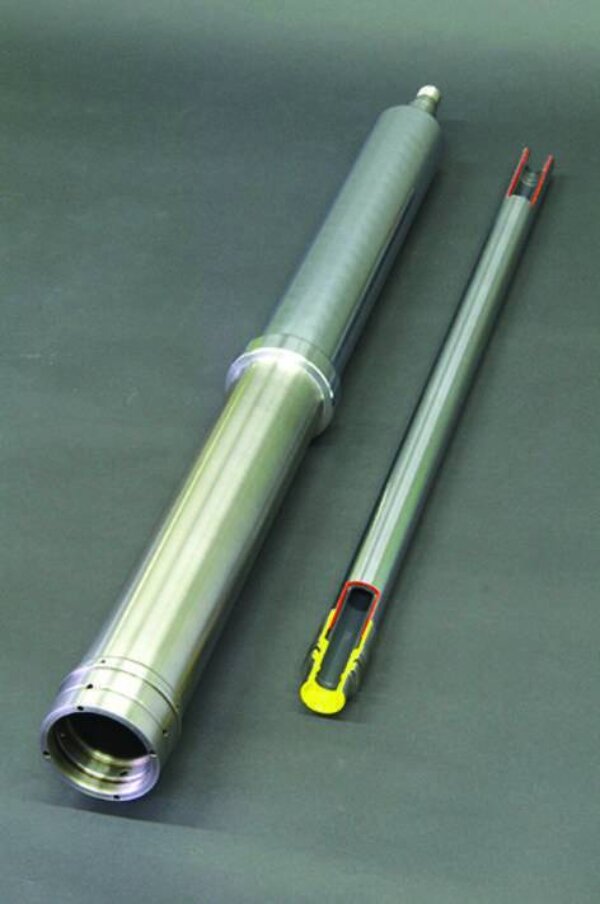

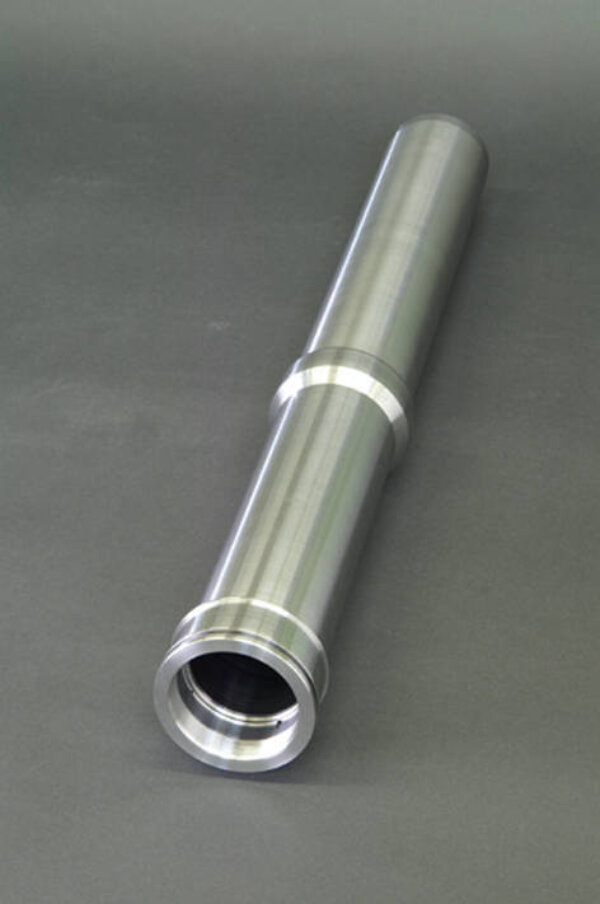

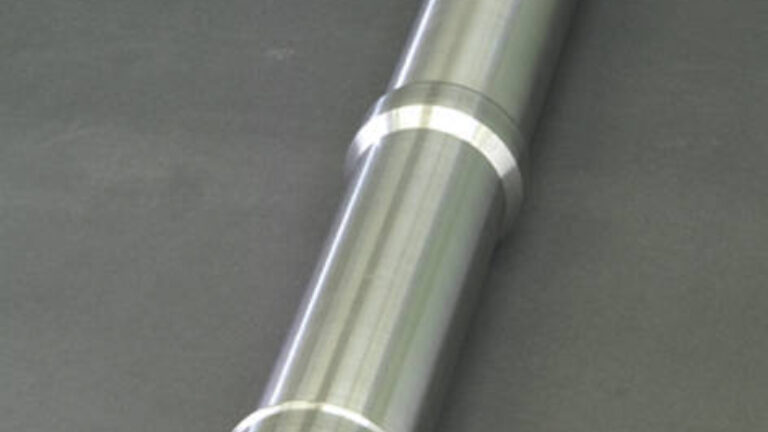

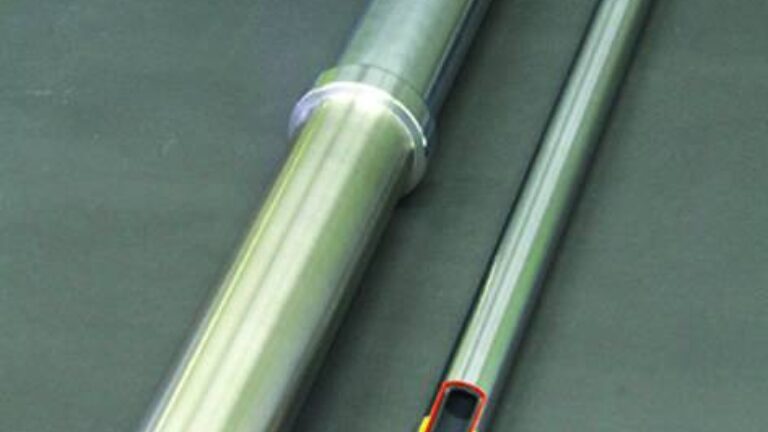

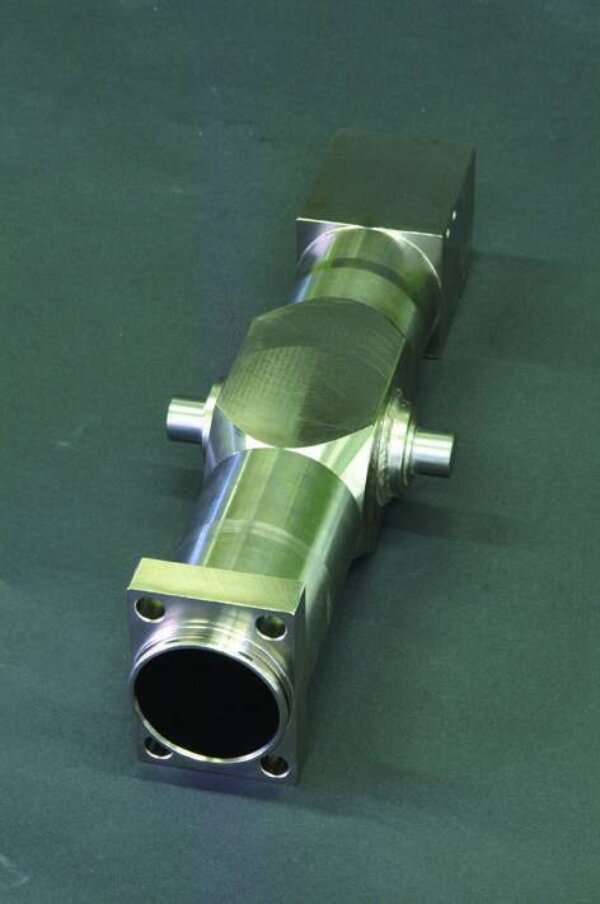

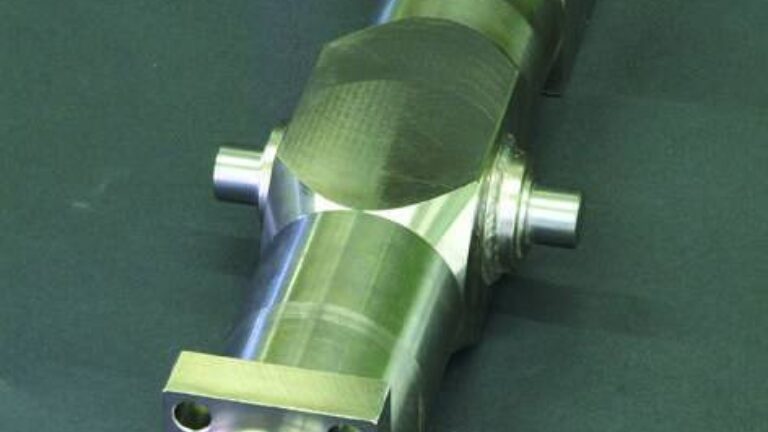

Through precise cylindrical grinding, we achieve the desired surface quality on shafts – exactly according to your specifications. We effortlessly process workpieces with dimensions up to 4,325 mm in length and up to 320 mm in diameter. Our machines are designed for both single-piece and series production.

Here you can find the entire range at a glance.

Maschine	Typ	Dimensionen
Cincinnati	Rundschleifmaschine konventionell	Länge max. 4'325 mm Durchmesser 30mm - 320 mm Stückgewicht max. 1200 kg
Kellenberger 1500 R	Rundschleifmaschine konventionell	Länge max. 1500 mm Durchmesser 5 mm – 180 mm Spanndurchmesser max. 250 mm

Home
Contract Manufacturing
Mechanical Processing

Honing

The crosshatch pattern for special inner diameters

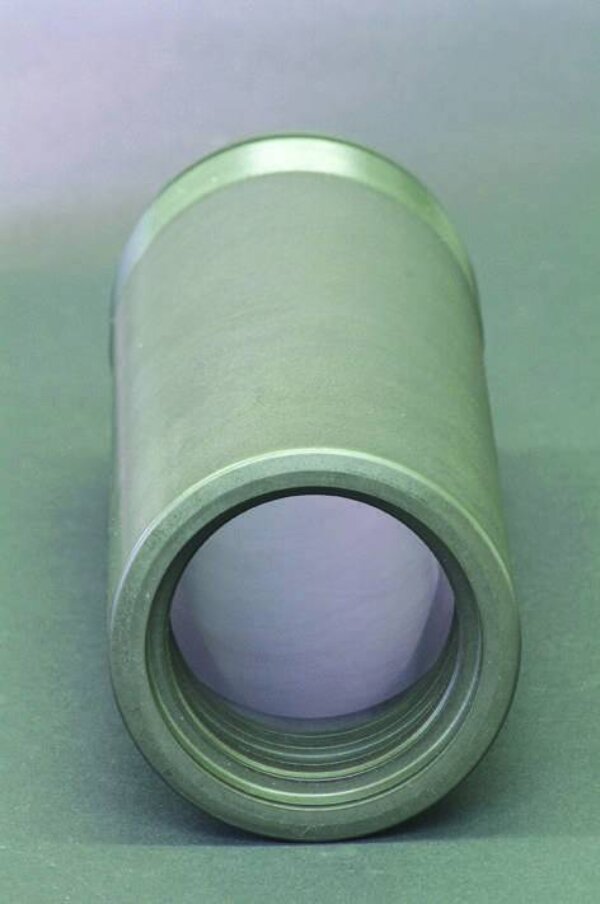

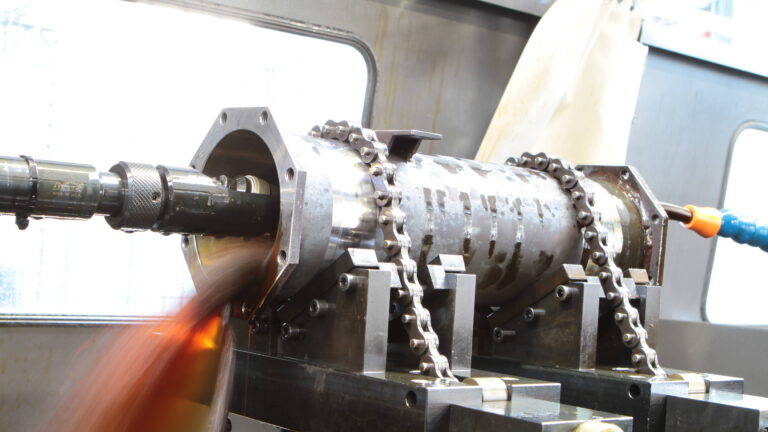

We are a specialized service provider for professional honing work. With state-of-the-art technology, we achieve bore tolerances starting from H7, in exceptional cases even H6, and achieve specific surface roughness, exactly according to your specifications. Honing improves the dimensional and shape accuracy of the inner surfaces as well as their tribological properties – for the maximum lifespan of your components.

Here you can find the entire range at a glance.

Maschine	Typ	Dimensionen
Sunnen HTS-124-040	Honmaschine	Durchmesser 25 – 450 mm Länge max. 4000 mm Aussendurchmesser max. 650 mm Stückgewicht bis 2000 kg

Home
Contract Manufacturing
Mechanical Processing

Deep Hole Drilling

A Specialty of the House

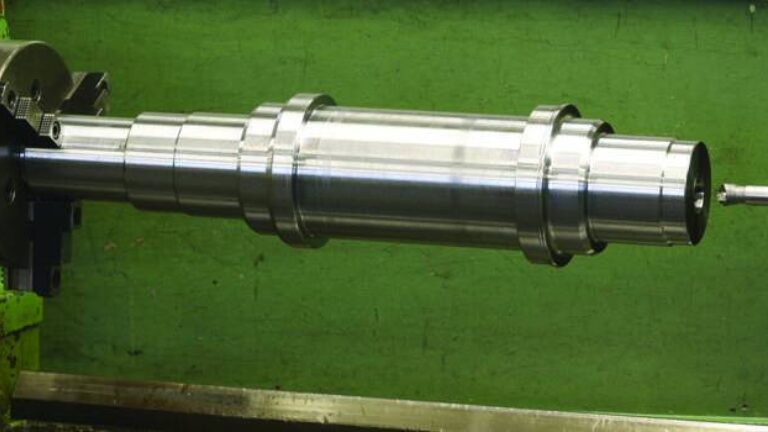

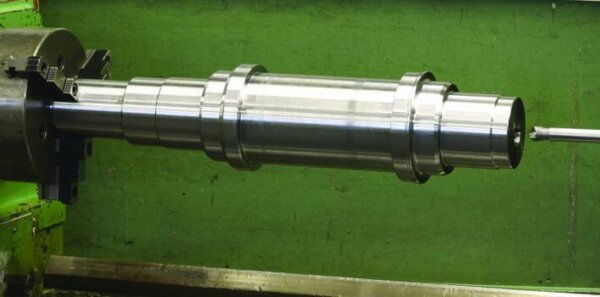

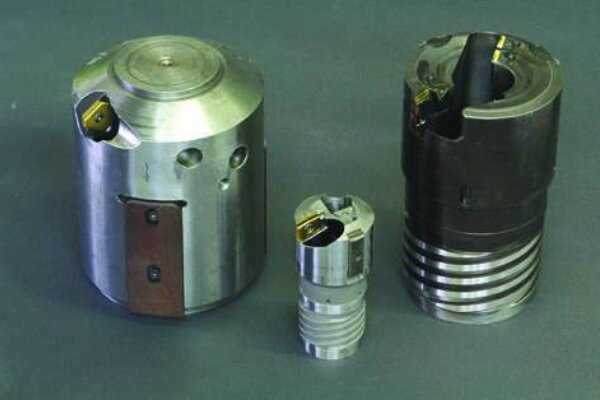

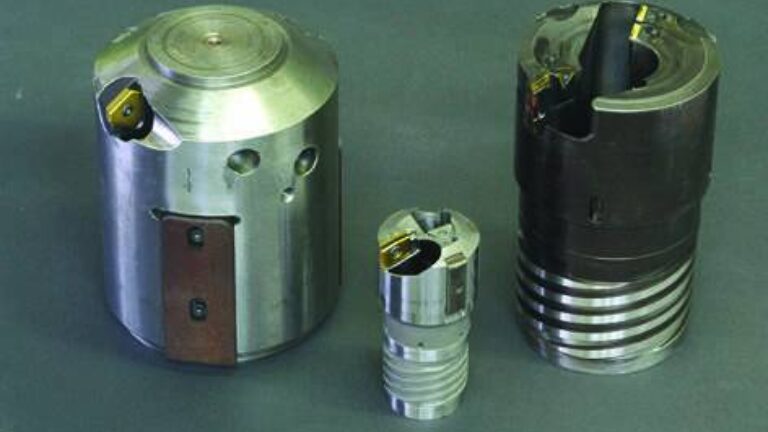

Deep hole drilling is executed by us with the highest precision. With our expertise, we process components up to two tons in weight and bore diameters from Ø 25 to Ø 170 mm, as well as a length up to 3500 mm. Our specialty is to drill rotationally symmetrical components centrally using the counter-rotating drilling method.

Here you can find the entire offer at a glance.

Maschine	Typ	Spezifikationen
VDF B 3SN	Tieflochbohren	Bohrungen Ø 25 - 170 × 3‘500 mm Länge, max. Spanndurchmesser 440 mm, max. Durchmesser Eintrittseite 330 mm, max. Aussendurchmesser 625 mm, Werkstückgewischt bis 2‘000 kg
